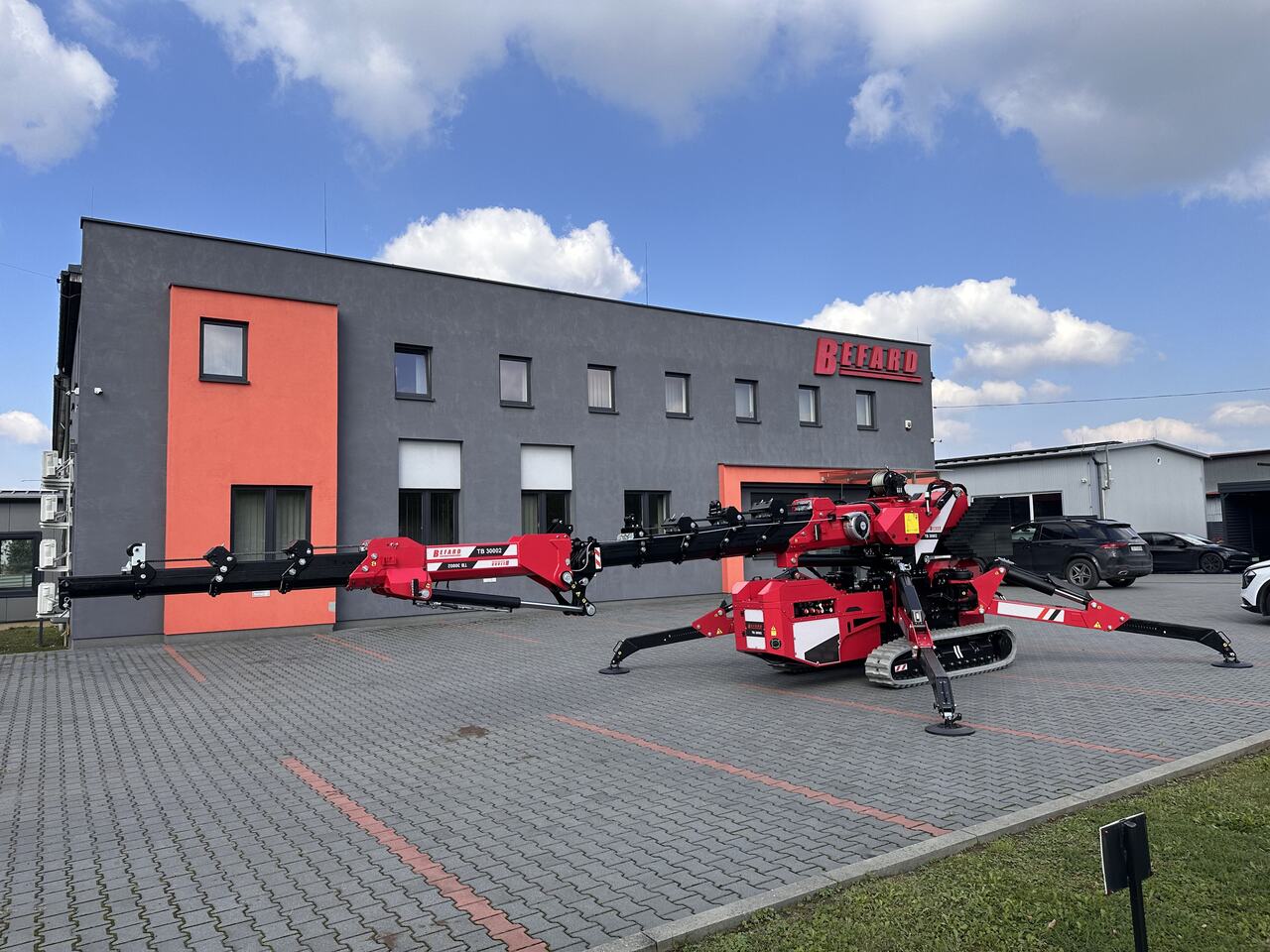

BEFARD TB 30002 – the latest model of mini crane with a lifting capacity of 10,000 kg.
In its standard configuration, the mini crane is equipped with radio remote control (for both driving and operation), a JIB, and a hydraulic winch.
Power supply options for the BEFARD TB30002 mini crane:
• 3-in-1 system – Diesel engine, power supply from 230 V or 400 V mains, and lithium-ion batteries (27 kWh)
or
• lithium-ion batteries (39 kWh).
The BEFARD TB 30002 also features Pick & Carry functionality, allowing it to carry loads of up to 5,000 kg while driving.
Download the data sheet of the device:
TB30002_DATA_SHEEET.pdf10.1 MB
Specification:
BEFARD TB 30002 Power supply options • 3-in-1 system – Diesel engine, power supply from 230 V or 400 V mains,
and lithium-ion batteries (27 kWh) or
• lithium-ion batteries (39 kWh)

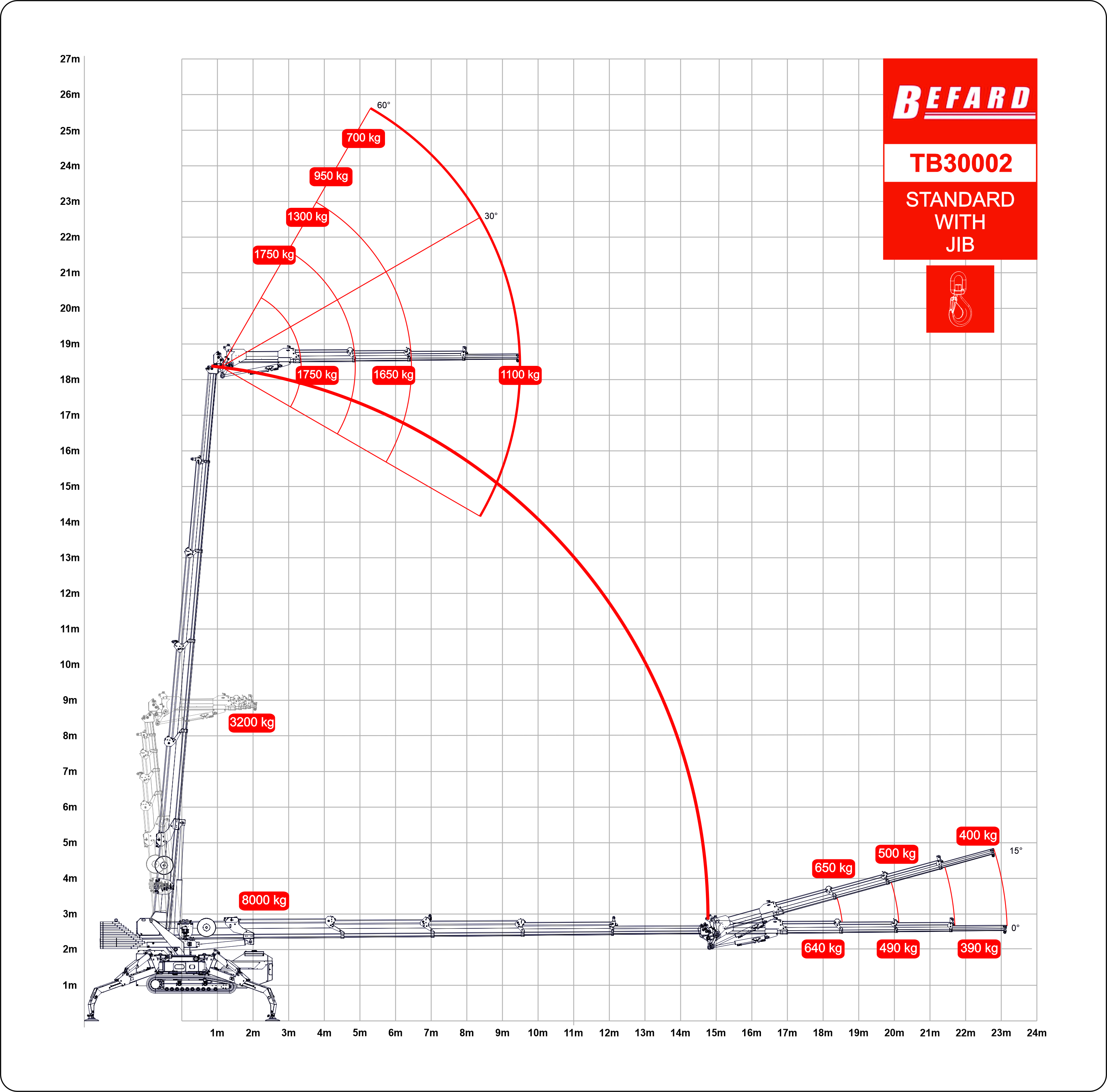

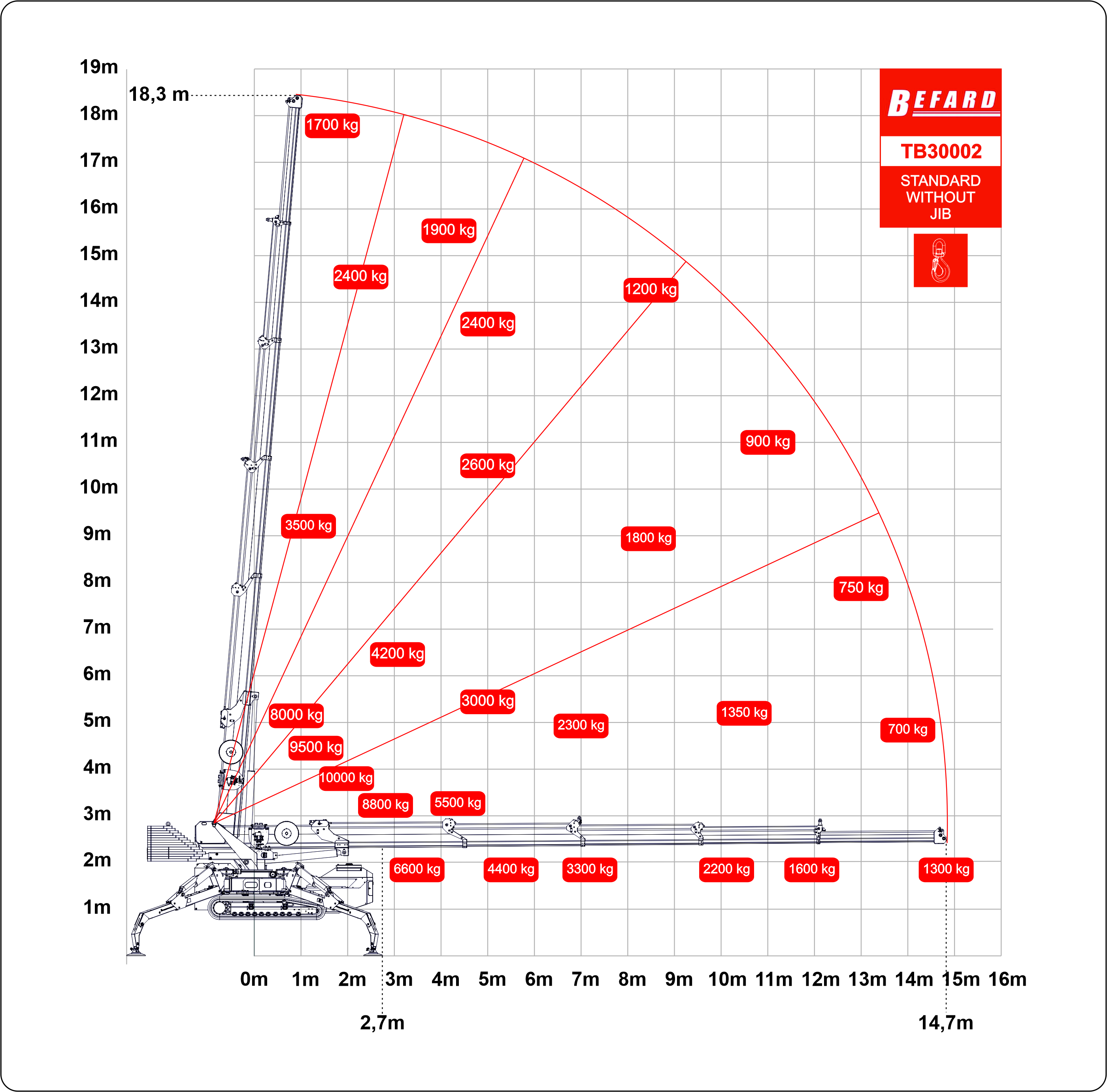

Maximum hoist capacity (as shown in the diagram) 10000kg Anti-overload system yes Hydraulic extensions 5x hydraulic
4x hydraulic (JIB)Max reach vertically with JIB and additional equipment 27,2m Maximum range horizontally with JIB and additional equipment 23,2m Main boom reach – vertical, without JIB 18,3m Main boom reach – horizontal, without JIB 14,7m Supports automatically opening, lowering and extending outrigger Height 212cm Width 128cm Length 421cm Weight ~10000 kg STANDARD EQUIPMENT:
Remote control Both driving and crane operations, as well as lowering of the hydraulic outriggers Electronic monitoring system Advanced control system with graphical display of working envelope and outrigger configuration Pick & carry hook Extending the reach by 0.5 m Main boom search hook Extending the reach by 1 m Block for the main boom For operation with the winch when the JIB boom is removed Search hook for the JIB Multi-position search hook (6 positions), increasing reach by 0.5 m Manual jib arm for Fly JIB Extending the reach by 1 m Block for the JIB boom Main boom probing hook increasing the reach by 1 m Search hook for the hydraulic JIB For operation with the winch with the JIB boom installed Winch 2000 kg Hydraulic winch with a 2000 kg capacity (rope length options: 70-130m) LED working lamps LED ligths powered directly from the machine RAL COLOR Machine color selection from the RAL palette available optionally at an extra cost The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU
All BEFARD devices are covered by a 12-month warranty.
