BEFARD XM 1200

PICK and CARRY tracked mini crane with column rotation function BEFARD XM1200 radio-controlled with non-marking tracks that allow you to work indoors and outdoors, e.g. in production halls. The use of a tracked chassis enables work in difficult construction conditions.

The unit can be retrofitted with any XP and XR series vacuum suction cup, hydraulic winch, suport feet, manual JIB arm ang search hook.

Specification:

	BEFARD XM 1200
Radio control	both driving and working of crane including start-stop engine
Power supply	The crane is equipped with three independent power sources – combustion engine, electric power (230 V / 400 V / 110 V), and lithium-ion batteries – providing full operational flexibility in any conditions. With a properly configured machine, the operator can freely choose one of the three available power sources depending on the location and nature of the work, for example: Combustion engine – ideal for outdoor operations, away from power sources. Mains power supply – for quiet, emission-free indoor work (available in different voltages depending on the country or installation). Lithium-ion battery – for mobile operation in enclosed spaces or areas where combustion engines cannot be used. Switching between power modes is quick and does not require interrupting the work, allowing the machine to adapt to different environments without compromising performance or safety. Electric motor: 1.5 kW, 48 V Combustion engine: Vanguard 10 HP, 7.5 kW Lithium-ion battery: 1 x 80 Ah
Maximum hoist capacity (as shown in the diagram)	1500 kg
Anti-overload system	yes
Hydraulic extensions	3
Maximum vertical outreach above optional equipment	10 m
Maximum vertical outreach above	7,7 m
Maximum horizontal outreach optional equipment	8,65 m
Maximum horizontal outreach	6,15 m

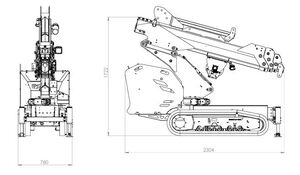

Height in the transport position	177 cm
Width of device	78 cm
Tracked chassis	non-marking, extendable chassis (78-125 cm)
Rotating column	rotation left and right 25° (total 50°)

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU.
